Unlocking the Mystery of Single-Phase AC Systems

1. What's the big deal with AC anyway?

Okay, let's face it. Electrical stuff can sound super complicated. But hang in there, because understanding a single-phase AC system doesn't require a degree in electrical engineering (thank goodness!). We're going to break it down in plain language, so even your grandma could understand it — no offense to grandmas; they're usually pretty smart!

At its core, an AC (Alternating Current) system is all about how electricity flows. Unlike a DC (Direct Current) system, where electricity moves in one direction (think batteries), AC electricity changes direction periodically. This "alternating" is what gives it its name. Now, single-phase just tells us about the type of AC system we're dealing with. Think of it like ordering coffee: you can get a regular coffee (single-phase), or you could get a fancy latte with all sorts of extra ingredients (three-phase... we'll get there eventually maybe!).

Why do we even use AC? Well, AC is much easier to transmit over long distances than DC. It can be efficiently stepped up or down in voltage using transformers. This is crucial for getting electricity from power plants to your home without losing a ton of energy along the way. Imagine trying to ship a giant barrel of orange juice across the country without a secure lid — you'd end up with a sticky, wasteful mess! Transformers are like the secure lid for electricity transmission.

So, single-phase AC systems are the unsung heroes of powering our homes and small businesses. They're the workhorses that keep the lights on, the fridge running, and your phone charged. Let's delve a little deeper and see exactly what makes them tick.

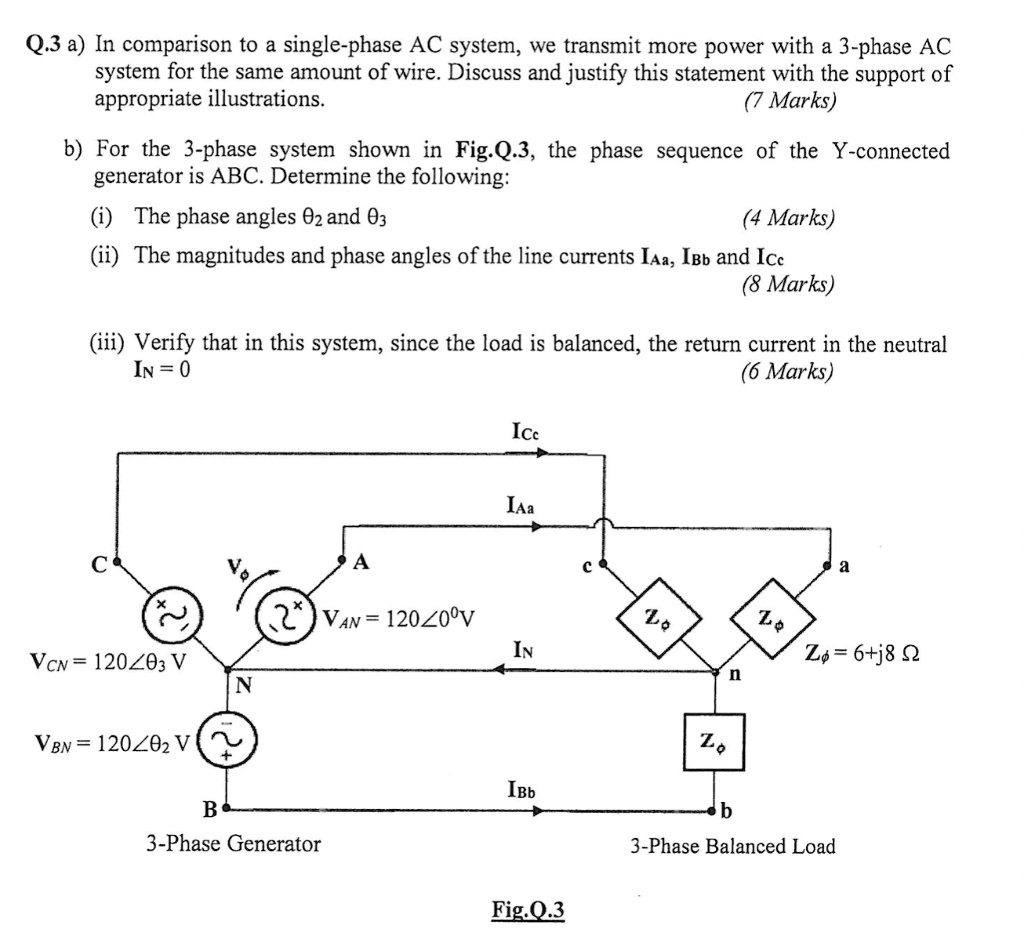

SOLVED Q.3 A) In Comparison To A Singlephase AC System, We Transmit

The Heart of the System

2. The wave of electrical change

Imagine a swing set. Single-phase AC operates like a single swing constantly moving back and forth. In electrical terms, this "swinging" motion is represented by a sine wave. This wave shows how the voltage and current rise and fall, changing direction multiple times per second. The number of times it completes a full cycle (back and forth) per second is called the frequency, measured in Hertz (Hz). In many countries, like the US and Canada, the standard frequency is 60 Hz, meaning the current changes direction 60 times every second! That's a lot of swinging!

A typical single-phase AC system uses two wires: a hot wire (also called the live wire) and a neutral wire. The hot wire carries the alternating current, while the neutral wire provides a return path for the current to complete the circuit. Think of it like a racetrack; the hot wire is the track where the cars (electrons) are speeding along, and the neutral wire is the pit lane where they can safely return.

When you plug in an appliance, you're essentially connecting it to this circuit. The alternating current flows through the appliance, powering it, and then returns through the neutral wire. This constant flow of electricity keeps everything running smoothly. A third wire, the ground wire, is often included for safety. It provides an alternative path for electricity to flow in case of a fault, preventing electric shocks. Think of it like a safety net for your electrical system.

Understanding this fundamental principle is key to appreciating the simplicity and effectiveness of single-phase AC systems. While three-phase systems are more powerful, single-phase is perfect for smaller loads. Its the reliable workhorse powering everyday life.

Electronics Free FullText A Direct SinglePhase To ThreePhase AC

Where Do We Find Single-Phase AC Systems in Action?

3. From your toaster to your TV

You're likely surrounded by single-phase AC systems right now! They're the backbone of residential power distribution. Your home appliances, like your refrigerator, washing machine, lights, and that trusty microwave, all run on single-phase AC power. If you're reading this on your laptop or phone, it's being powered (either directly or indirectly through a battery) by single-phase AC that came from your wall outlet.

Small businesses also often rely on single-phase power. Think of your local coffee shop, the neighborhood bakery, or the small office down the street. They use single-phase systems for their lighting, computers, and smaller equipment. Single-phase is a cost-effective and efficient solution for these types of applications.

Even some industrial applications, where smaller motors and loads are involved, can utilize single-phase AC. For example, a small workshop with power tools like drills and saws might operate on a single-phase system. Its about matching the power source to the power demand.

In essence, if you're dealing with lower power requirements, single-phase AC is often the preferred choice due to its simplicity and lower cost compared to more complex systems like three-phase. Look around; you'll see it in action everywhere!

Single Phase And Three Diagram

Single-Phase vs. Three-Phase

4. Comparing the powerhouses

Okay, now that we've become somewhat acquainted with single-phase, let's peek at its bigger, more powerful sibling: the three-phase AC system. The main difference lies in the number of alternating currents being used. Single-phase has one, while three-phase has — you guessed it — three!

Imagine a team of rowers in a boat. Single-phase is like having one rower, pulling the boat back and forth. Three-phase is like having three rowers, each pulling at different times, resulting in a smoother, more continuous power delivery. This is why three-phase is preferred for high-power applications like large industrial motors, factories, and heavy machinery. It can deliver more power more efficiently.

Think of it this way: single-phase is like a regular garden hose, while three-phase is like a fire hose. Both deliver water (electricity), but the fire hose can deliver a much greater volume and pressure. Three-phase also provides a more constant power output, reducing vibrations and extending the lifespan of equipment.

While three-phase is the powerhouse, it's also more complex and expensive to install and maintain. That's why single-phase is the champion for homes and small businesses where the power demands are lower. Choosing between the two depends entirely on the application and the amount of power required.

What's The Difference Between Single Phase And Three ACDC Power

Advantages (and a Few Disadvantages) of Single-Phase AC

5. Every rose has its thorns

Single-phase AC systems come with several advantages that make them ideal for many applications. They're relatively simple to design, install, and maintain compared to three-phase systems. This simplicity translates to lower costs, making them a budget-friendly option for homes and small businesses.

Another advantage is their widespread availability. Single-phase power is readily accessible in most residential and commercial areas, making it easy to connect and use. Plus, single-phase equipment, like appliances and smaller motors, is generally cheaper and more readily available than their three-phase counterparts.

However, single-phase systems also have a few limitations. They are less efficient than three-phase systems for high-power applications. Single-phase motors also tend to be less efficient and produce more vibration than three-phase motors. Basically, if you need serious power, single-phase might not be the best choice.

So, while single-phase is great for powering your coffee maker and charging your phone, it might not be the best option for running a giant industrial crane. Like choosing the right tool for the job, understanding the pros and cons helps you select the most appropriate power system for your needs.

Electrical Waveform Of Singlephase AC Power Source (a). Integrated

FAQ

6. Let's clear things up

Still scratching your head? No problem! Here are some common questions about single-phase AC systems:

Q: Can I convert single-phase to three-phase?

A: Yes, you can! Devices called rotary phase converters or static phase converters can be used to convert single-phase power to three-phase power. However, it's generally more expensive and less efficient than having a direct three-phase connection if that's an option.

Q: Is single-phase power dangerous?

A: All electricity can be dangerous if not handled properly. Single-phase power is perfectly safe when used correctly and with appropriate safety measures in place, such as proper grounding and circuit breakers. Always consult a qualified electrician for any electrical work.

Q: How do I know if I have single-phase or three-phase power at my home?

A: In most residential areas, you'll have single-phase power. If you're unsure, check your electrical panel. Three-phase systems typically require larger circuit breakers and more complex wiring configurations. If you're still unsure, consult an electrician.

Q: What voltage is typical for single phase systems?

A: In the US, 120V and 240V are common for residential single-phase applications. Other countries may use different voltages, such as 230V.
